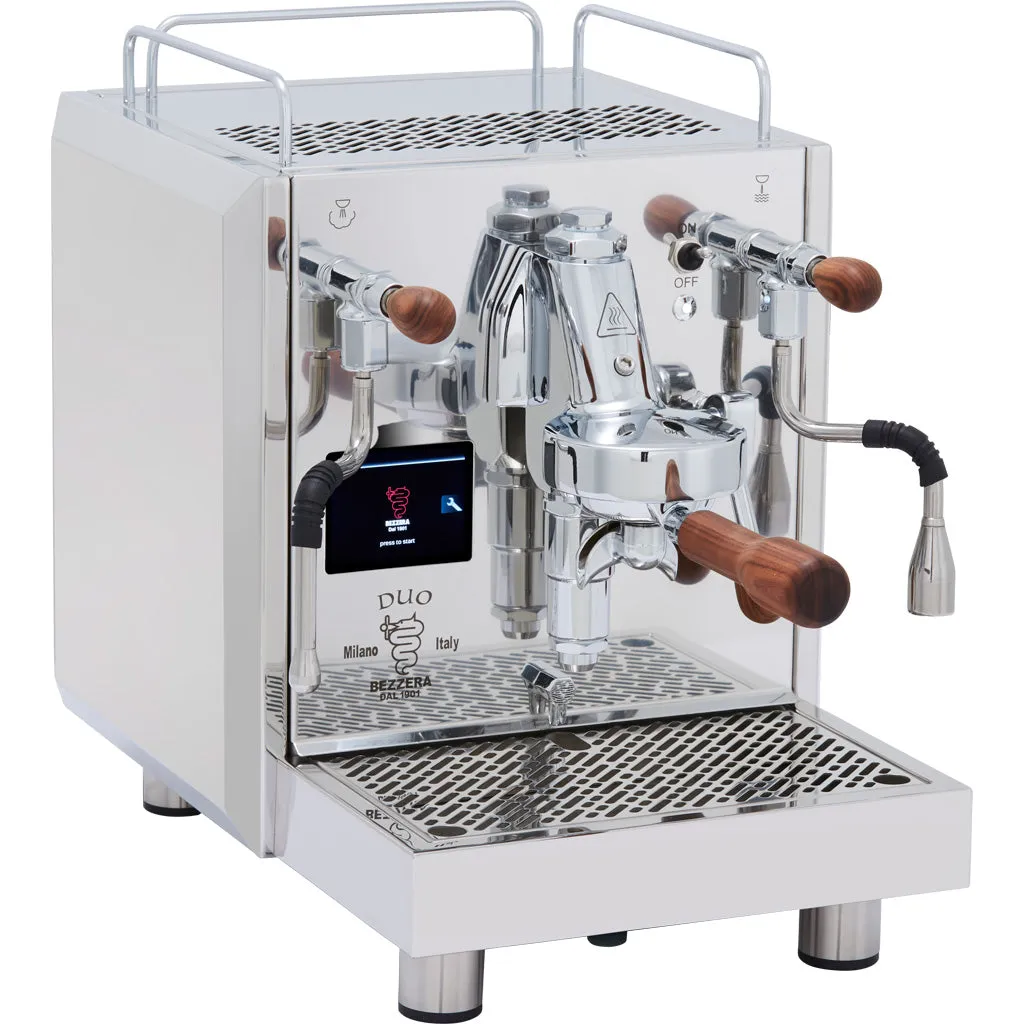

Bezzera Duo MN Dual Boiler Double PID Espresso Machine
If temperature control and stability are what you’re looking for, your search is over! The Bezzera Duo MN uses two separate PID’s to control the temperature of the coffee boiler and the water/steam boiler. We caught a first-look of the DUO at HOST Milan 2017, and we were thoroughly impressed with the thought Bezzerra has put into this new dual boiler espresso machine that will make distinct flavor profiles with ease.
The Bezzera Duo MN equips the DUO with a beautiful 3.5″ LED touch display that allows the user to program a number of functions with ease. Adjusting the temperature between the two boilers is crystal clear, as well as checking the water levels. Other programmable features on the touchpad include:
- pre-infusion, priority heat up between boilers
- auto on/off settings
- switch between direct plumb and reservoir
- automatic backflush program
- maintenance reminders
- selection of language
Independently Controlled Boilers
Two separate PID’s control the .45 L coffee boiler and 1L water/steam boiler. You can even program through the touch display which boiler you’d prefer to heat up first!
E61 Grouphead
The E61 grouphead ensures consistent water stability. Hot water circulates from the boiler through the grouphead and back to keep the grouphead and your portafilter nice and hot. Lever next to the grouphead activates a microswitch which turns on the pump to draw water through the coffee grinds.
Multi-Directional Steam and Hot Water Wand
Allows for more flexibility. Joystick controls for steam and hot water wands give instant on/off operation as opposed to knobs that you must turn clockwise / counter-clockwise. Each has a rubber cover to prevent fingers from burning.
Wooden Elements
Less plastic is always a bonus in our eyes. The Matrix is designed with wooden handles on not only the portafilter but the joysticks and lever as well.
Three Way Solenoid Valve
Allows quick removal of portafilter after espresso extraction by relieving the pressure built up in the grouphead. The result is a dry puck of coffee you can easily knock out of the portafilter.
Rotary Vane Pump and Motor
Produces a quieter extraction vs a vibratory vane pump. Situated underneath tank/reservoir and adjustment can be made from underneath the espresso machine.
Very Large Water Tank
A 4 L water reservoir means fewer refills for higher volume use, low water levels are detected by an electronic sensor and are indicated on the touch display. Refilling occurs from the top of the machine by lifting up the lid on hinges.
Passive Cup Warmer
Able to hold up to six cappuccino cups and passively warm them to ensure the coffee remains hot.
Automatic Water Refill to Boiler
Automatic plus safety cutout to prevent machine damage.
Accessories included:
- Single and Double spout portafilter w/ wood handles
- 1-cup & 2-cup filter baskets
- Blind filter basket
- Plastic tamper
- Plastic scoop
- Grouphead cleaning brush
- Reservoir plug
- 1.5-meter stainless steel braided hose
- Instruction manual.
- Measurements: 13″ Width x 18.5″ Depth x 16 5/8th H with rails (and 15″ H without rails)
- Cup Warmer: 9 3/4″ x 9 3/4″
| Height (inches) |
17, approximate |
|---|---|
| Width (inches) |
13 |
| Depth (inches) |
19, approximate |
| Wattage (watts) |
Coffee – 800, Steam – 1200 |
| Voltage (volts) |
110-120 |
| Boiler capacity (liters) |
Coffee – 0.45, Steam – 1 |
| Portafilter size (mm) |
58 |
| Tank capacity (liters) |
4 |
| Country of manufacture |
Milan, Italy |
| Approvals |
CE |
